OVERVIEW
Compact and light, high reliability and durability
Custom design and various interface(RS232 or USB)
Tamper and weather resistance
Supplied with SIM, PSAM and ESAM(1 Slot)
EMV Level 1 and PBOC approved
ISO standards compliant
Data encryption supported (DES)-optional
FEATURES
USB 2.0 Full Speed Interface
CCID Compliance
USB Firmware Upgradeability
Smart Card Reader:
Read/write speed up to 424 kbps
Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
Supports ISO 14443 Type A and B cards, MIFARE, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
Supports MIFARE 7-byte UID, MIFARE Plus and MIFARE DESfire
Built-in anti-collision feature (only 1 tag is accessed at any time)
One ISO 7816–compliant SAM slot (Class A)
NFC Support:
NFC Reader/Writer Mode
Peer-to-Peer Mode
Card Emulation Mode
Application Programming Interface:
Supports PC/SC
Supports CT-API (through wrapper on top of PC/SC)
Peripherals:
User-controllable bi-color LED
User-controllable buzzer
SAM Slot
APPLICATIONS
ATMs/CDs, Kiosk Terminals, Payment Systems, Vending Machines, Fuel Dispensers
Gaming Machines, Electric Vehicle Charging Piles, POS Terminals, other ID Terminals
Parking Meters, Security and Access Control Terminals, Credit Authorization Terminals

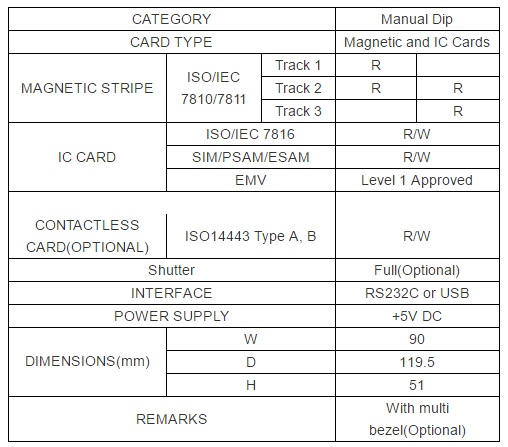

TECH SPECS
